XXY-3535RGB10.3S-20 XXY-3535RGB10.3S-30 XXY-3535RGB10.3S-45 XXY-3535RGB10.3S-60 XXY-3535RGB10.3S-90 XXY-3535RGB10.3J-110

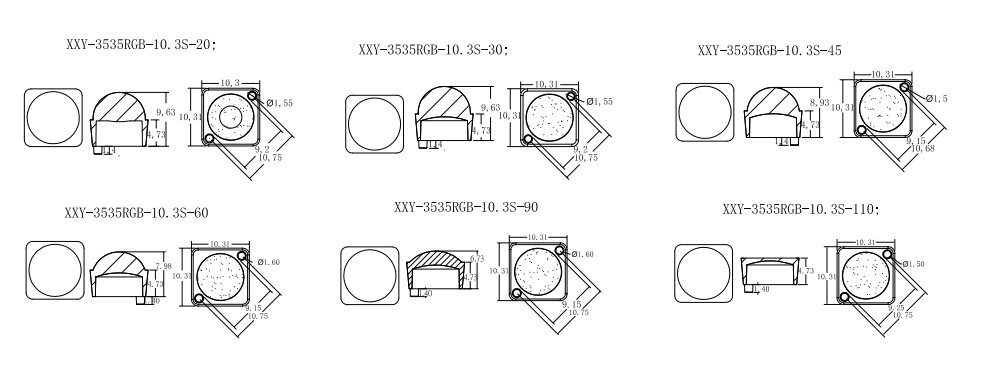

1. XXY-3535RGB-10.3S-20
Dimension 尺寸:L10.31*W10.31*H9.63
View Angle 光強半角:20°
Material 材質:帝人PC L1225Z-100
Description 描述:凸鏡面 鏡芯
Match LED 匹配光源:3535RGB(貼片)
2. XXY-3535RGB-10.3S-30
Dimension 尺寸:L10.31*W10.31*H9.63
View Angle 光強半角:30°
Material 材質:帝人PC L1225Z-100
Description 描述:凸鏡面 鏡芯
Match LED 匹配光源:3535RGB(貼片)
3. XXY-3535RGB-10.3S-45
Dimension 尺寸:L10.31*W10.31*H8.93
View Angle 光強半角:45°
Material 材質:帝人PC L1225Z-100
Description 描述:凸鏡面 鏡芯
Match LED 匹配光源:3535RGB(貼片)
4. XXY-3535RGB-10.3S-60
Dimension 尺寸:L10.31*W10.31*H7.98
View Angle 光強半角:60°
Material 材質:帝人PC L1225Z-100
Description 描述:凸鏡面 鏡芯
Match LED 匹配光源:3535RGB(貼片)
5.XXY-3535RGB-10.3S-90
Dimension 尺寸:L10.31*W10.31*H6.73
View Angle 光強半角:90°
Material 材質:帝人PC L1225Z-100
Description 描述:凸鏡面 鏡芯
Match LED 匹配光源:3535RGB(貼片)
6. XXY-3535RGB-10.3J-110
Dimension 尺寸:L10.31*W10.31*H4.73
View Angle 光強半角:110°
Material 材質:帝人PC L1225Z-100
Description 描述:凸鏡面 鏡芯
Match LED 匹配光源:3535RGB(貼片)
